backPAC Cargo Cache, GX460; Left-side

Lexus GX460 (2010-2023) Driver-Side Cargo Platform & In-Floor Storage Solution

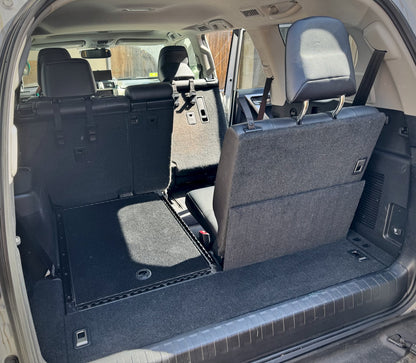

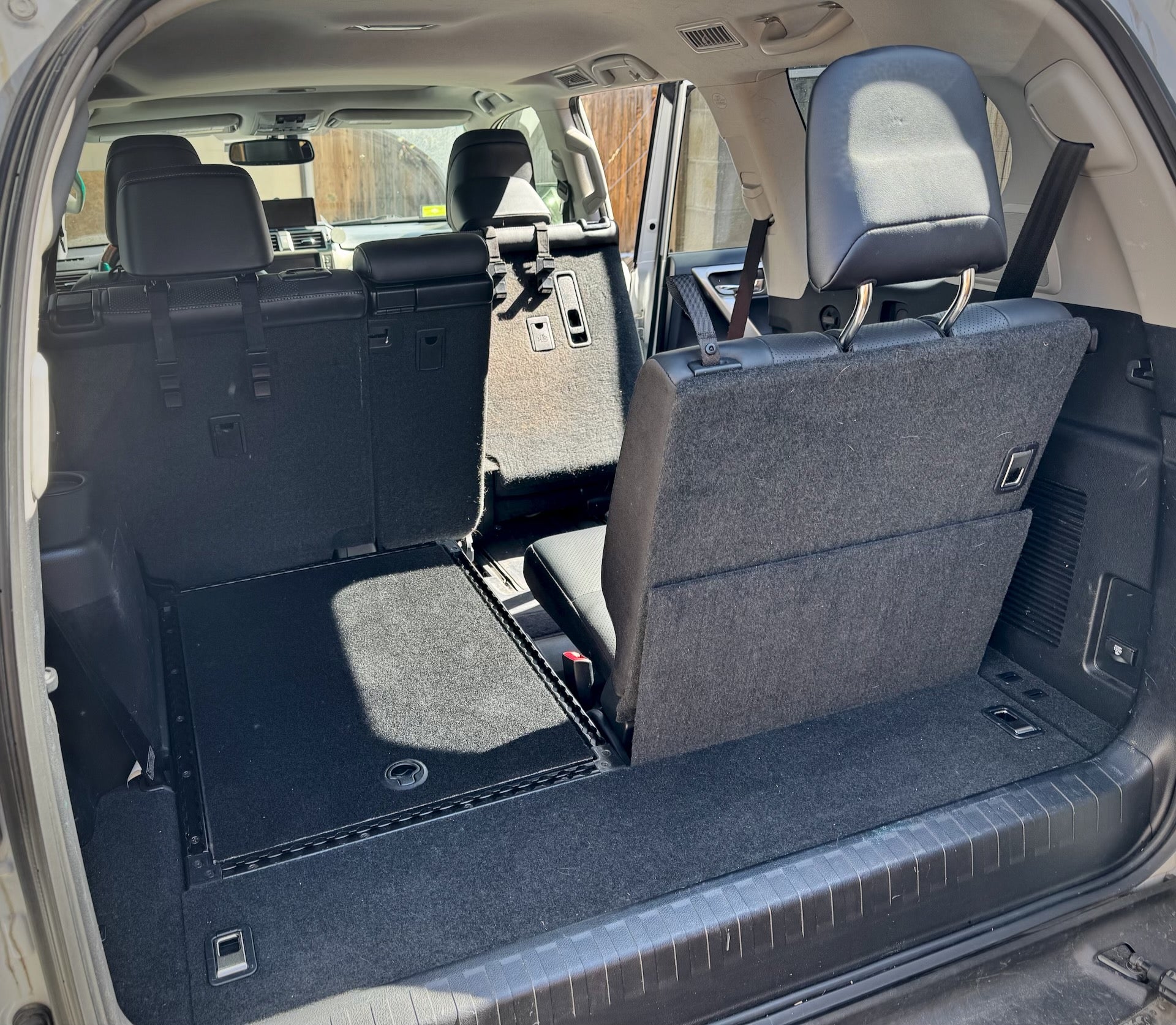

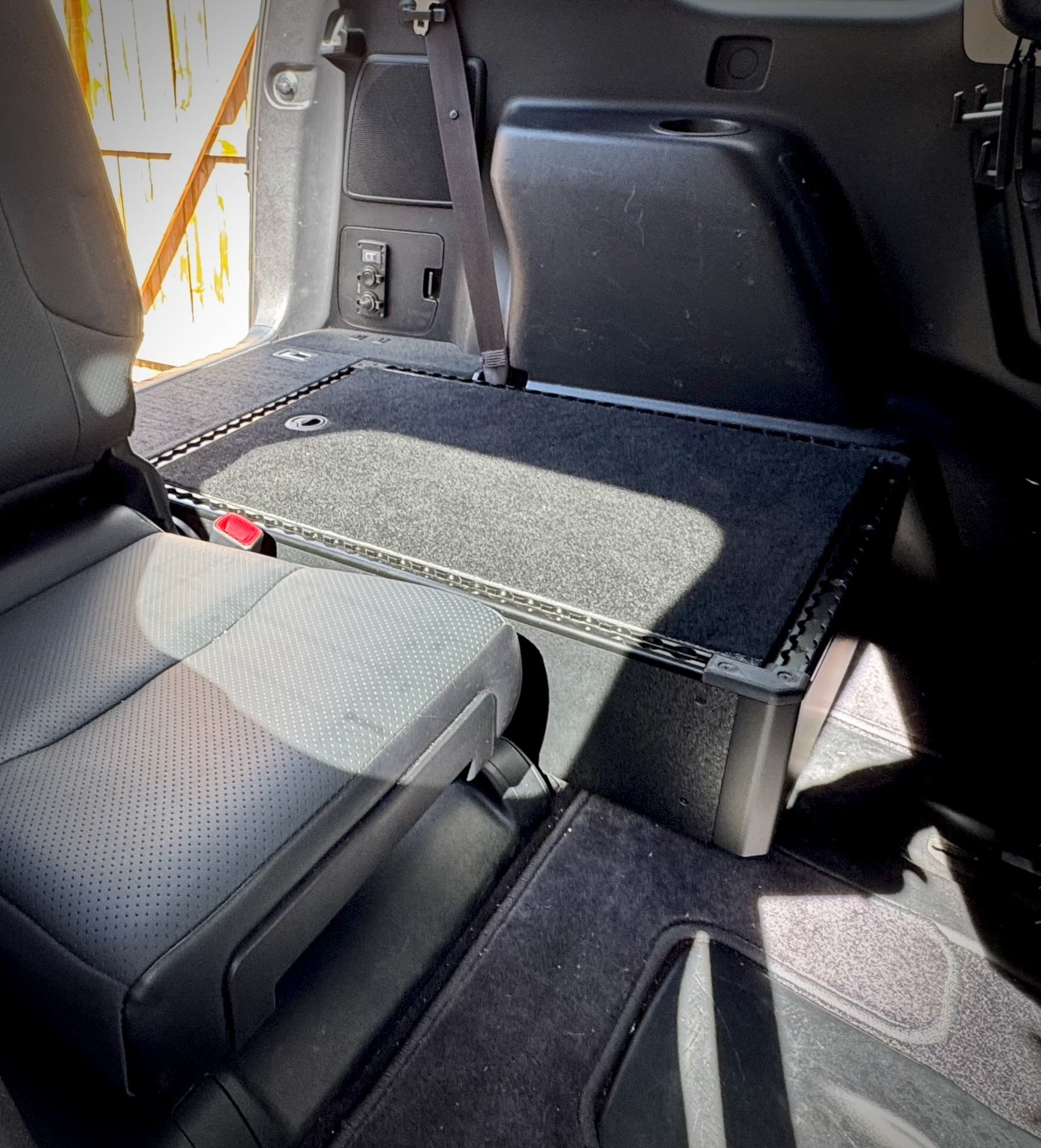

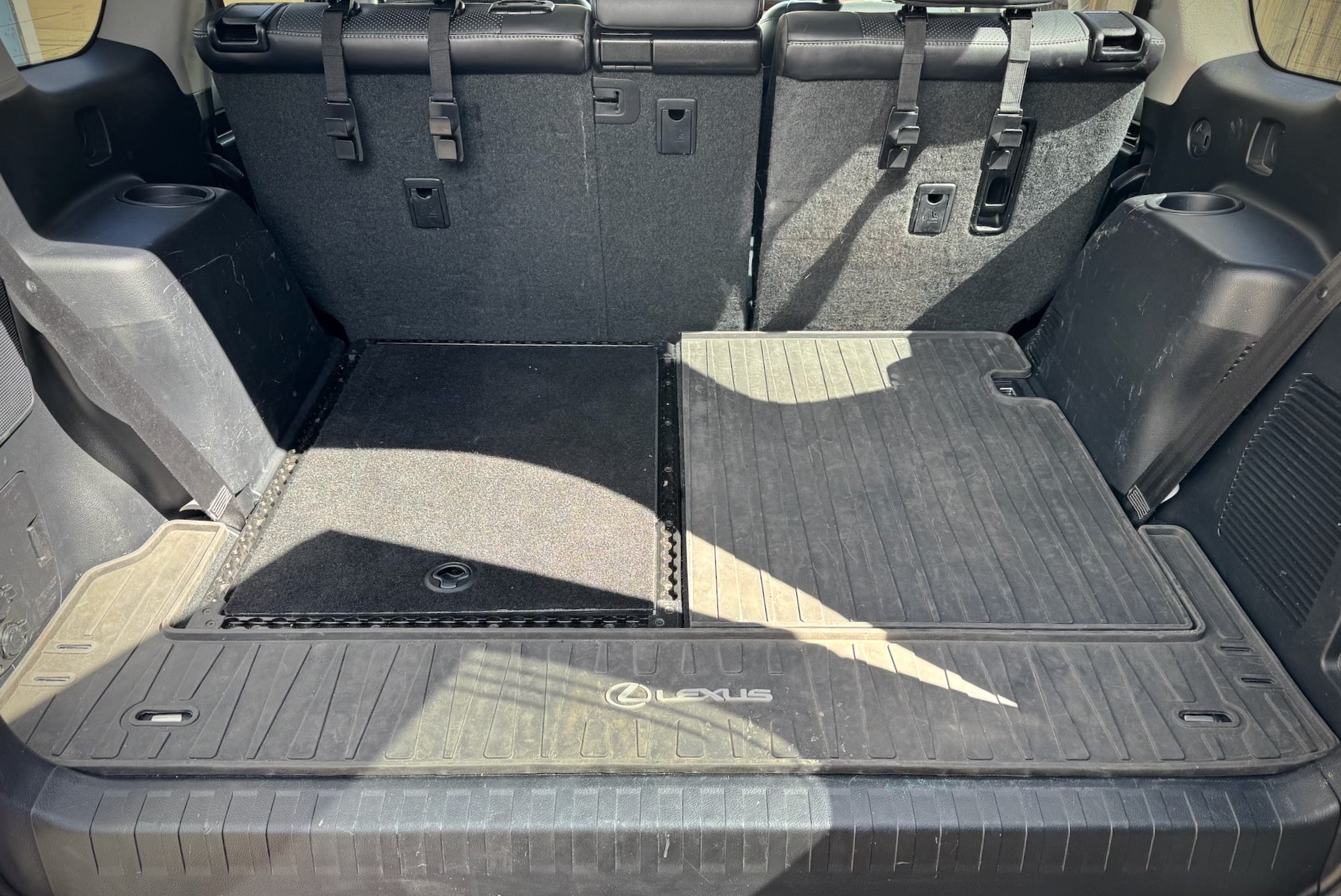

Replaces the driver-side (left) 3rd-row seat while keeping the passenger-side (right) seat fully functional.

Integrated Storage

• Inside dimensions 26.5 x 17.3 x 4.8 in. (672 x 439 x 121 mm)

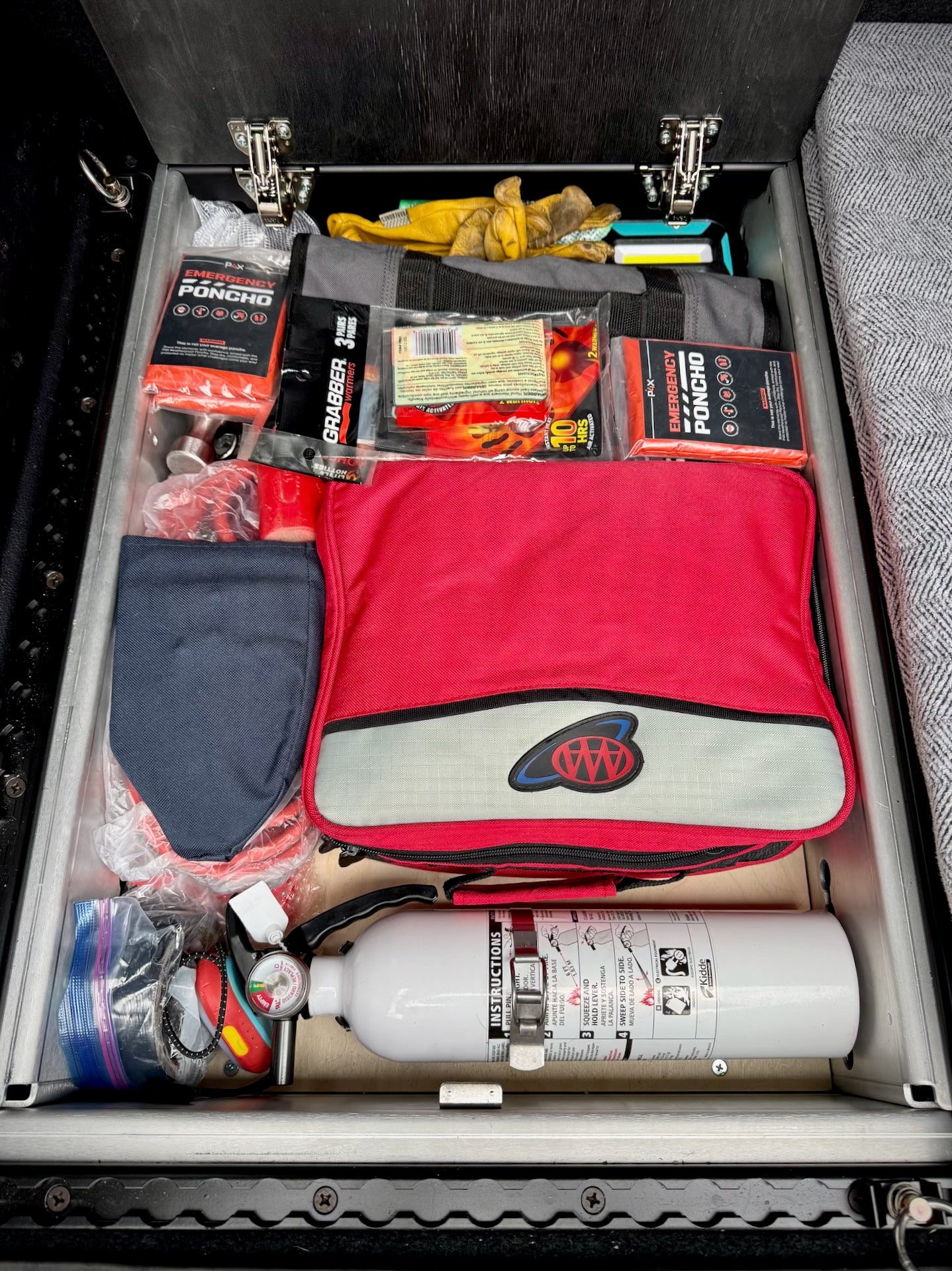

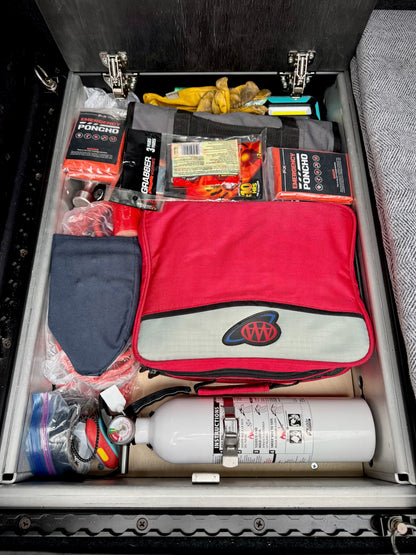

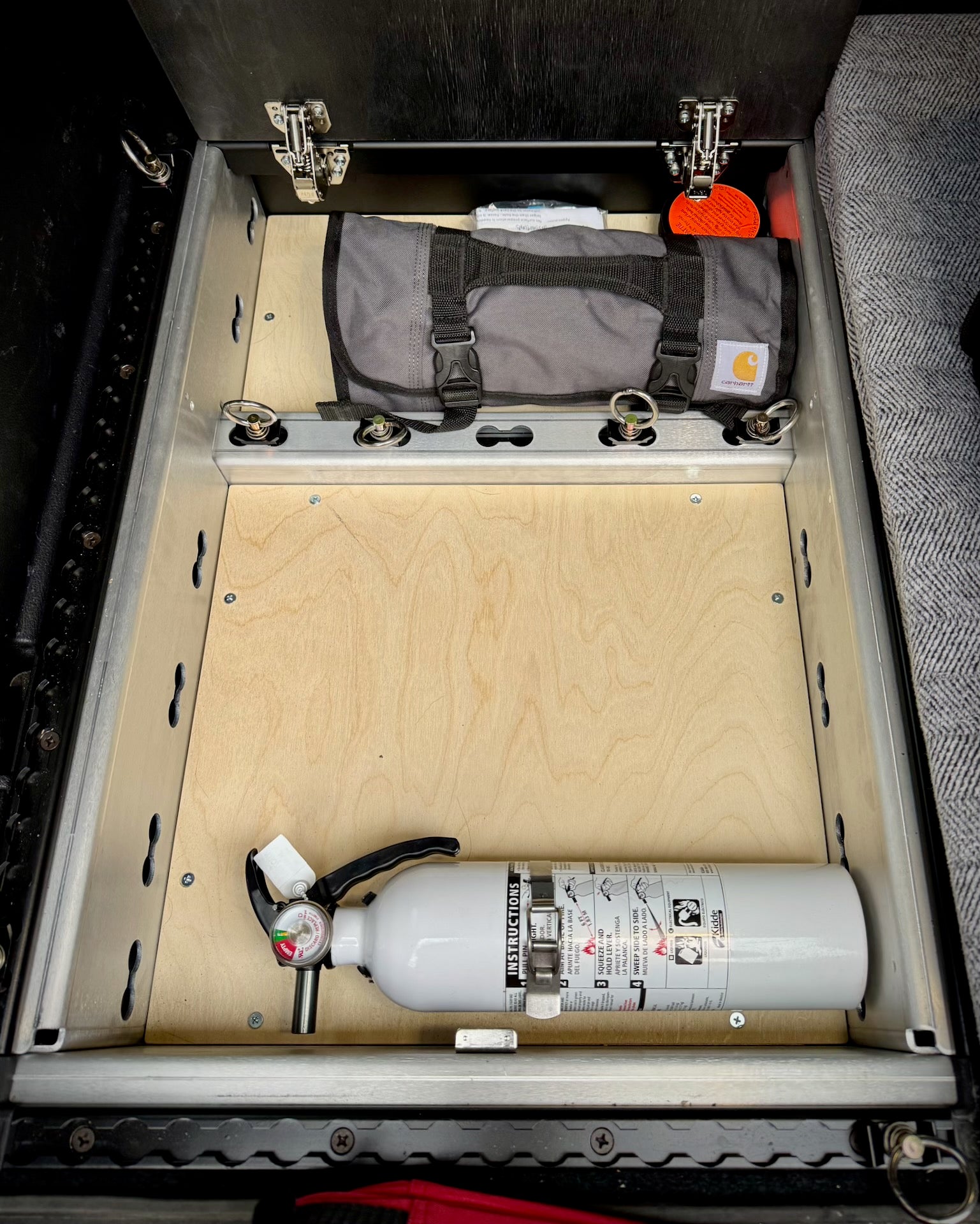

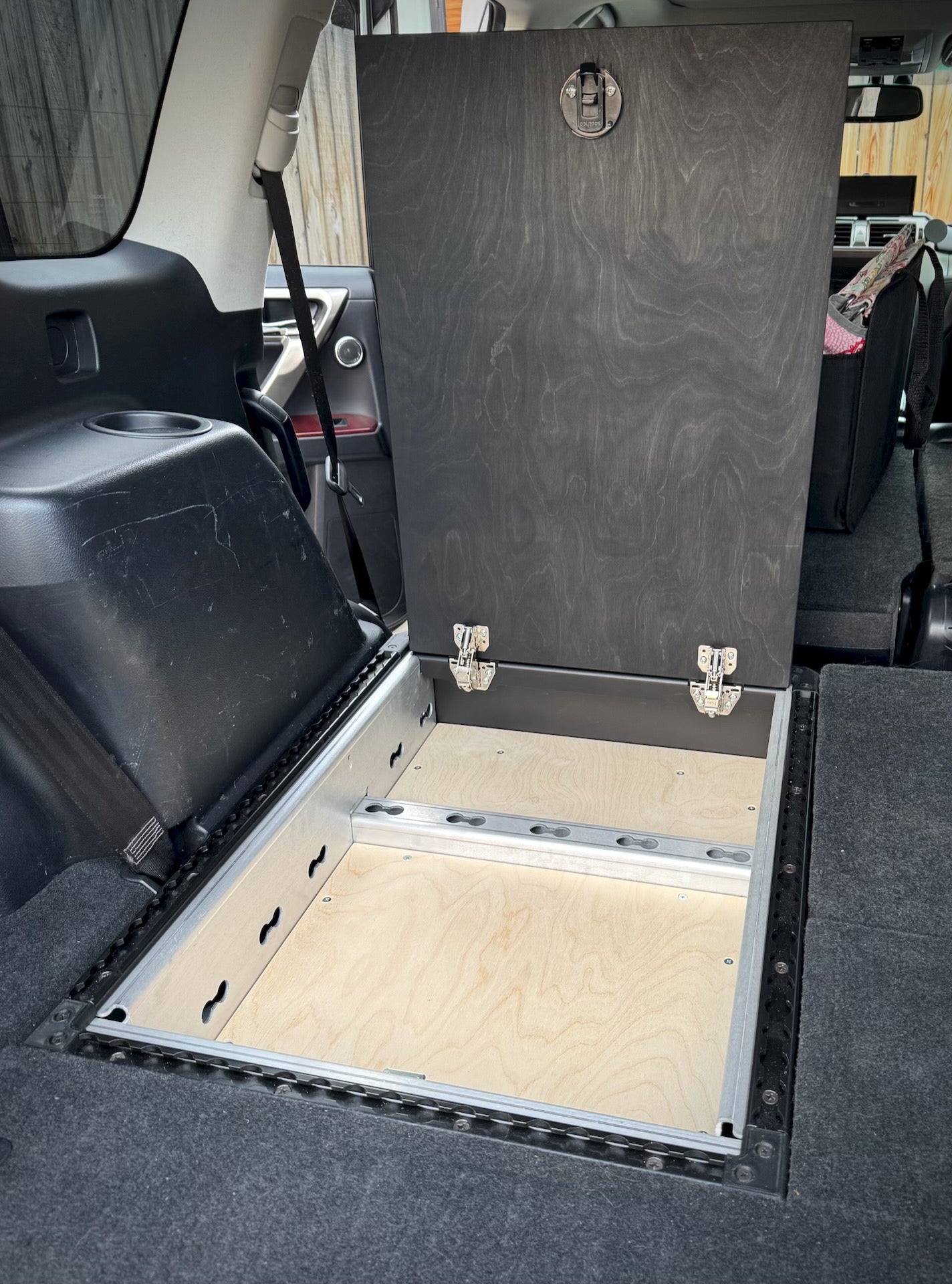

• Carpeted hatch opens to reveal a clean, in-floor storage cache

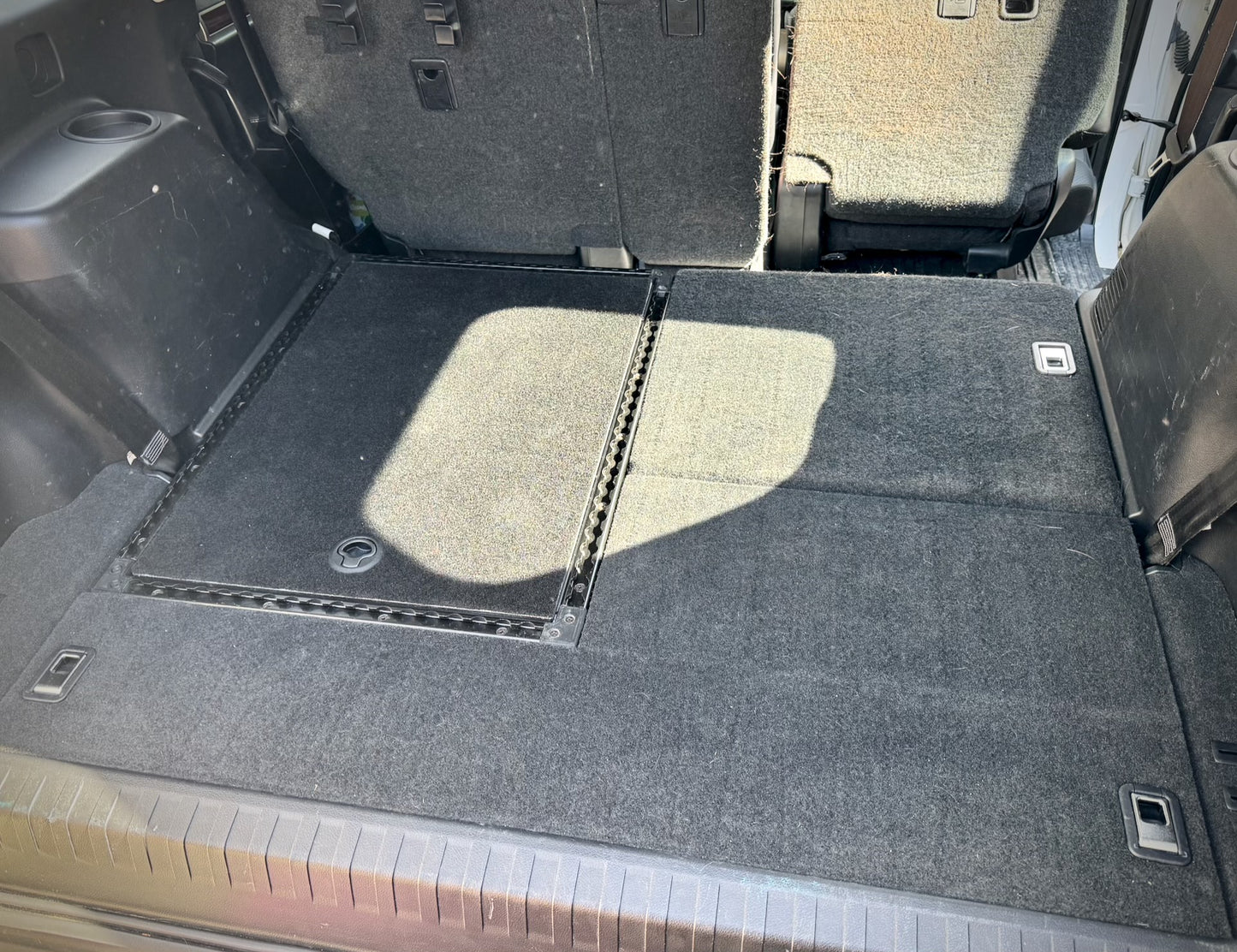

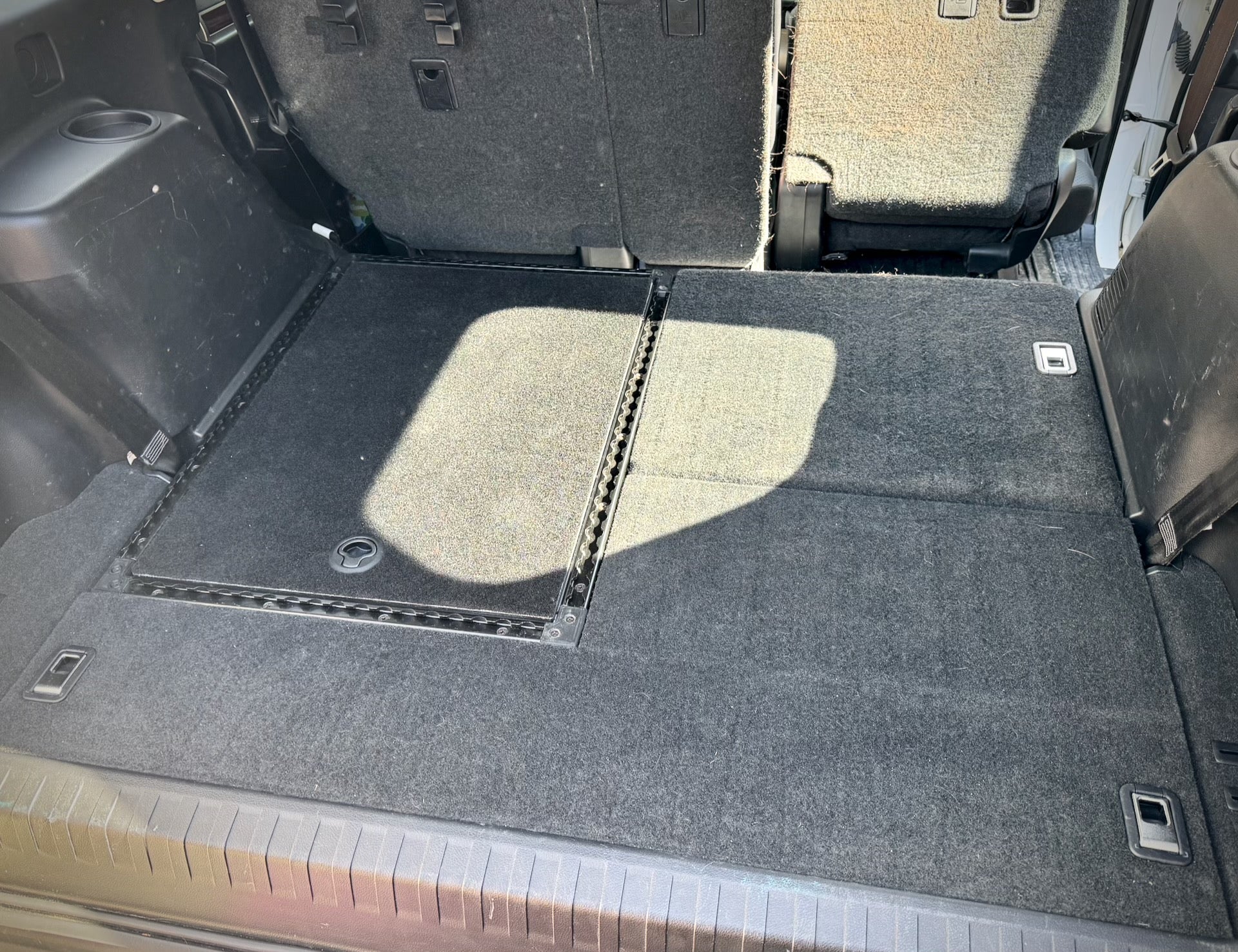

• Hatch sits flush when closed, with soft-close RV cabinet hinges and a flush latch

Tie-Downs & Mounting

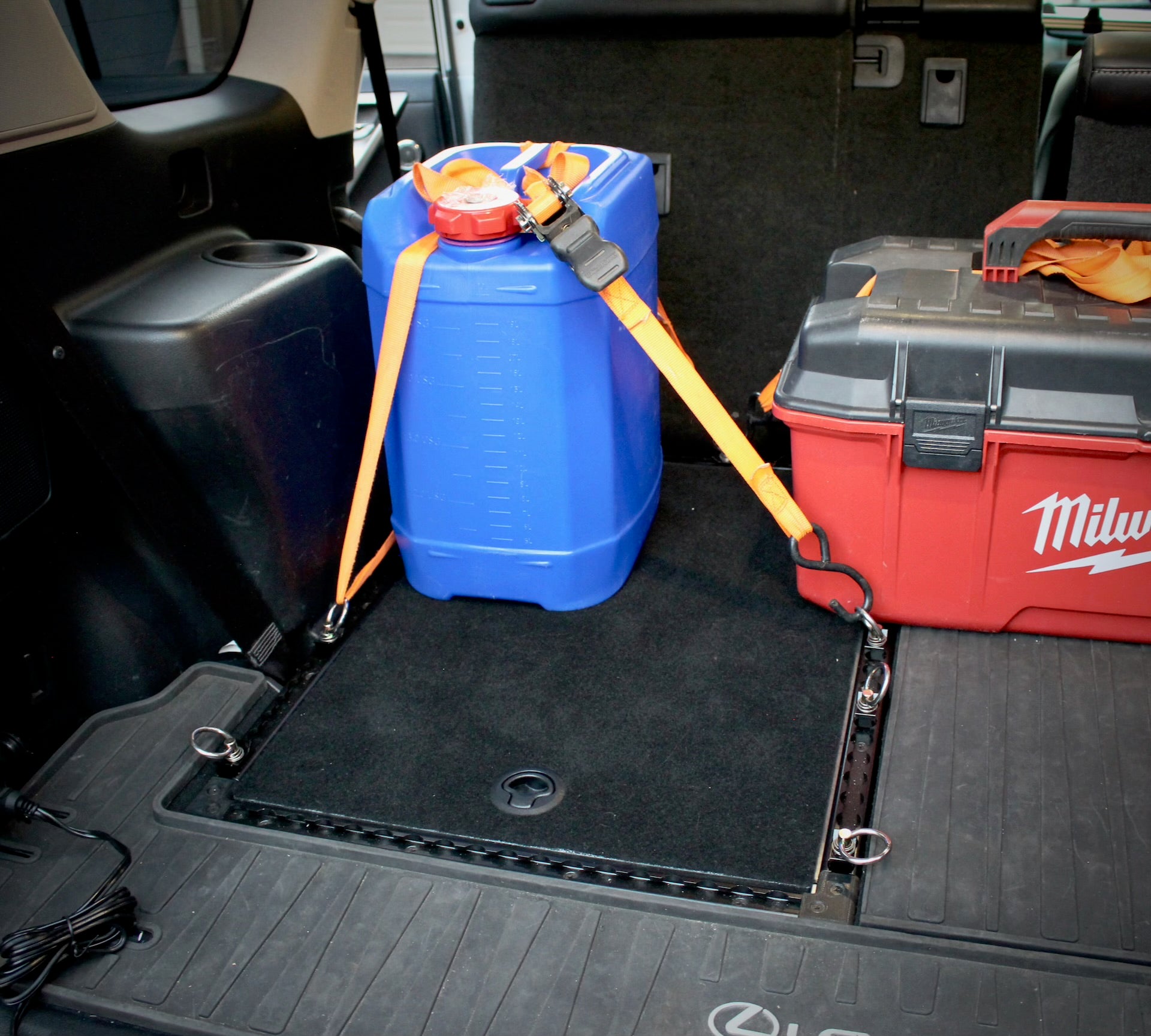

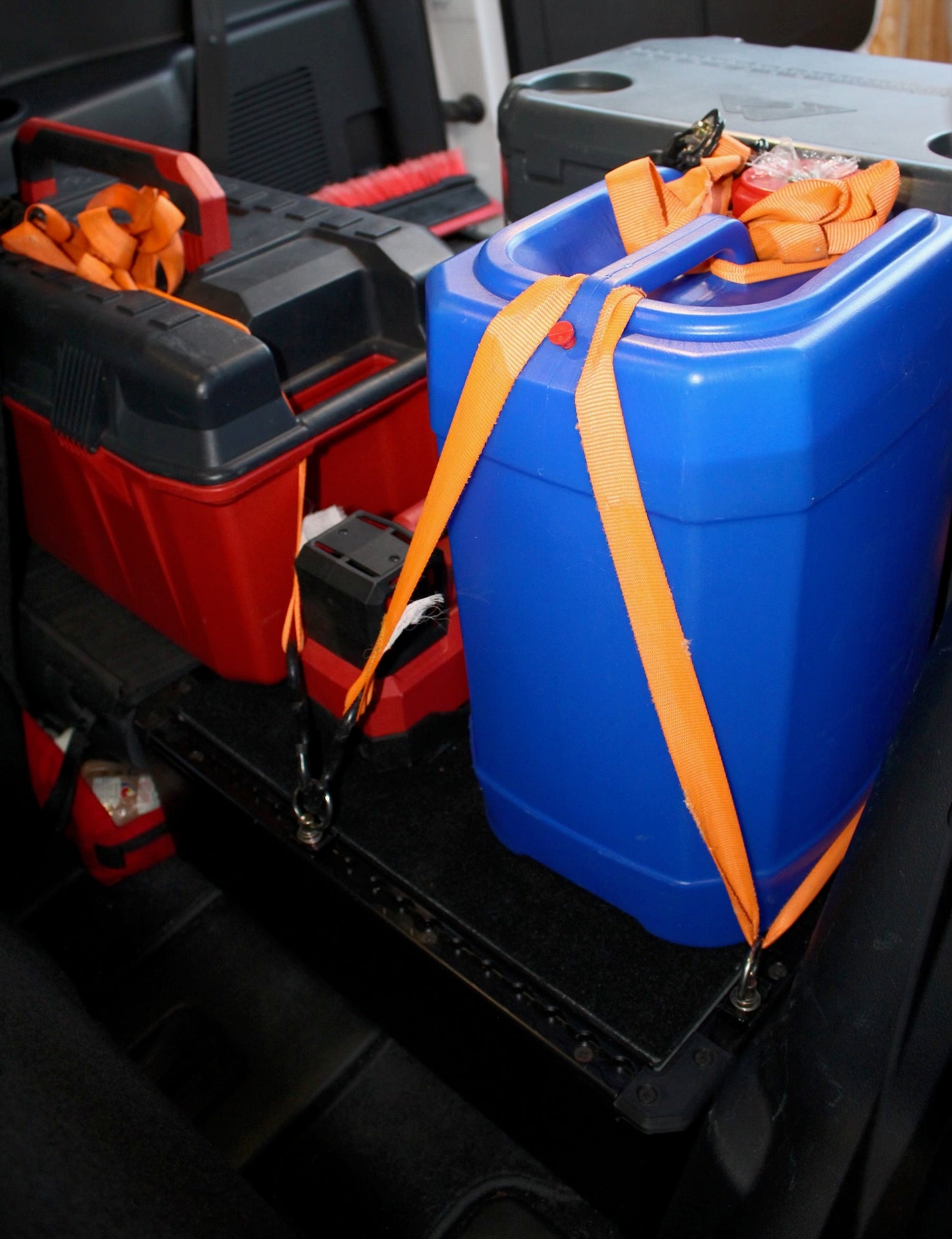

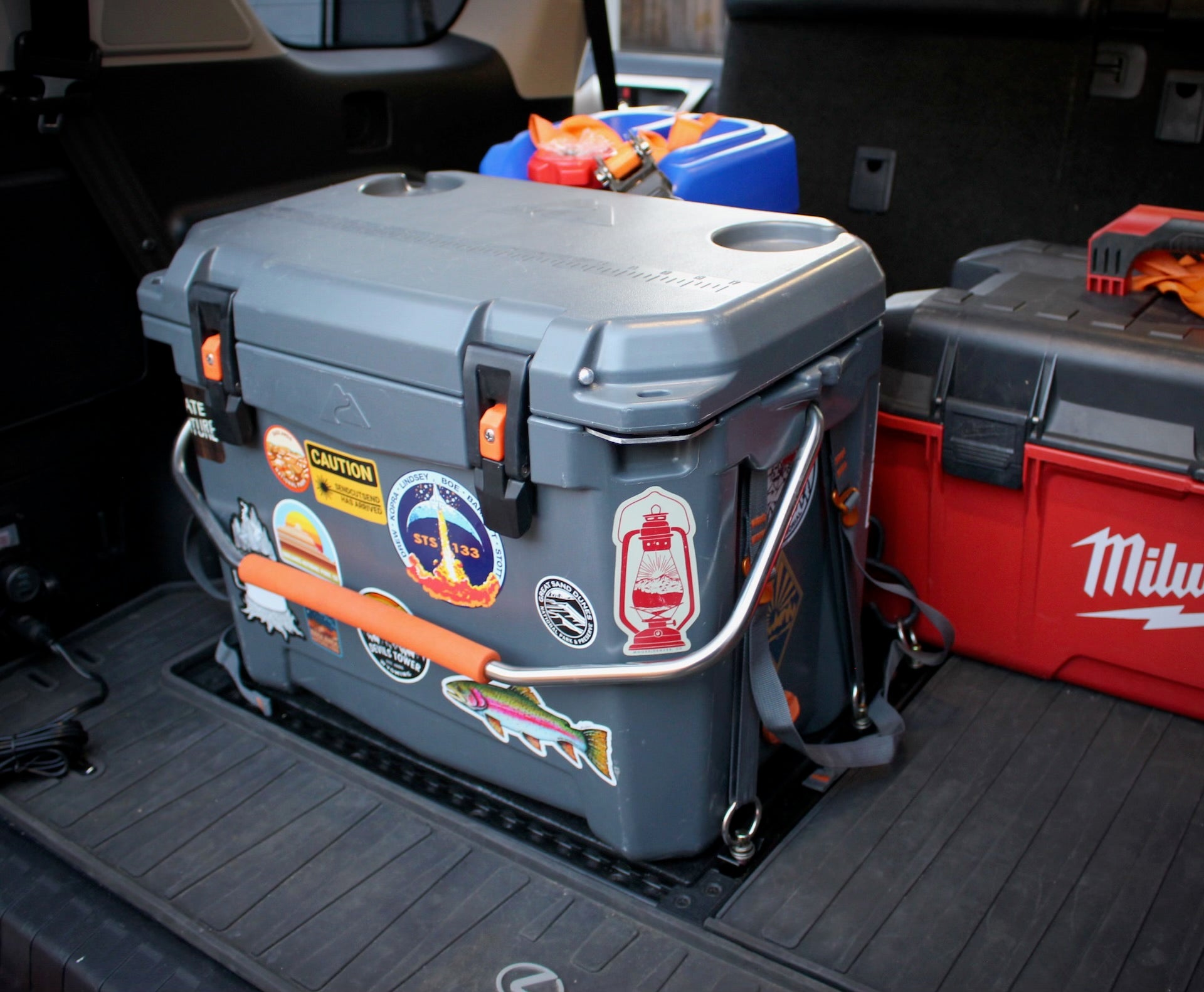

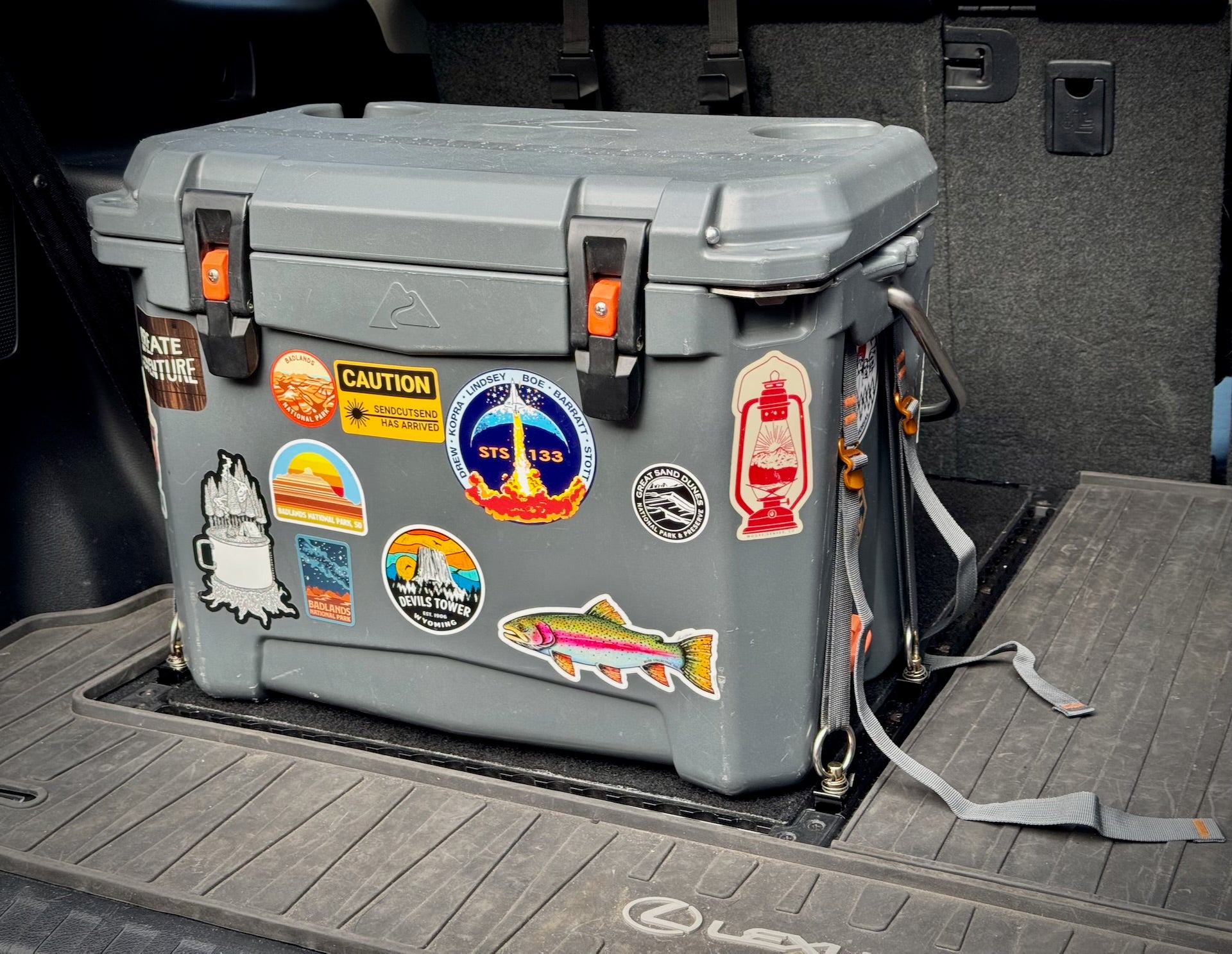

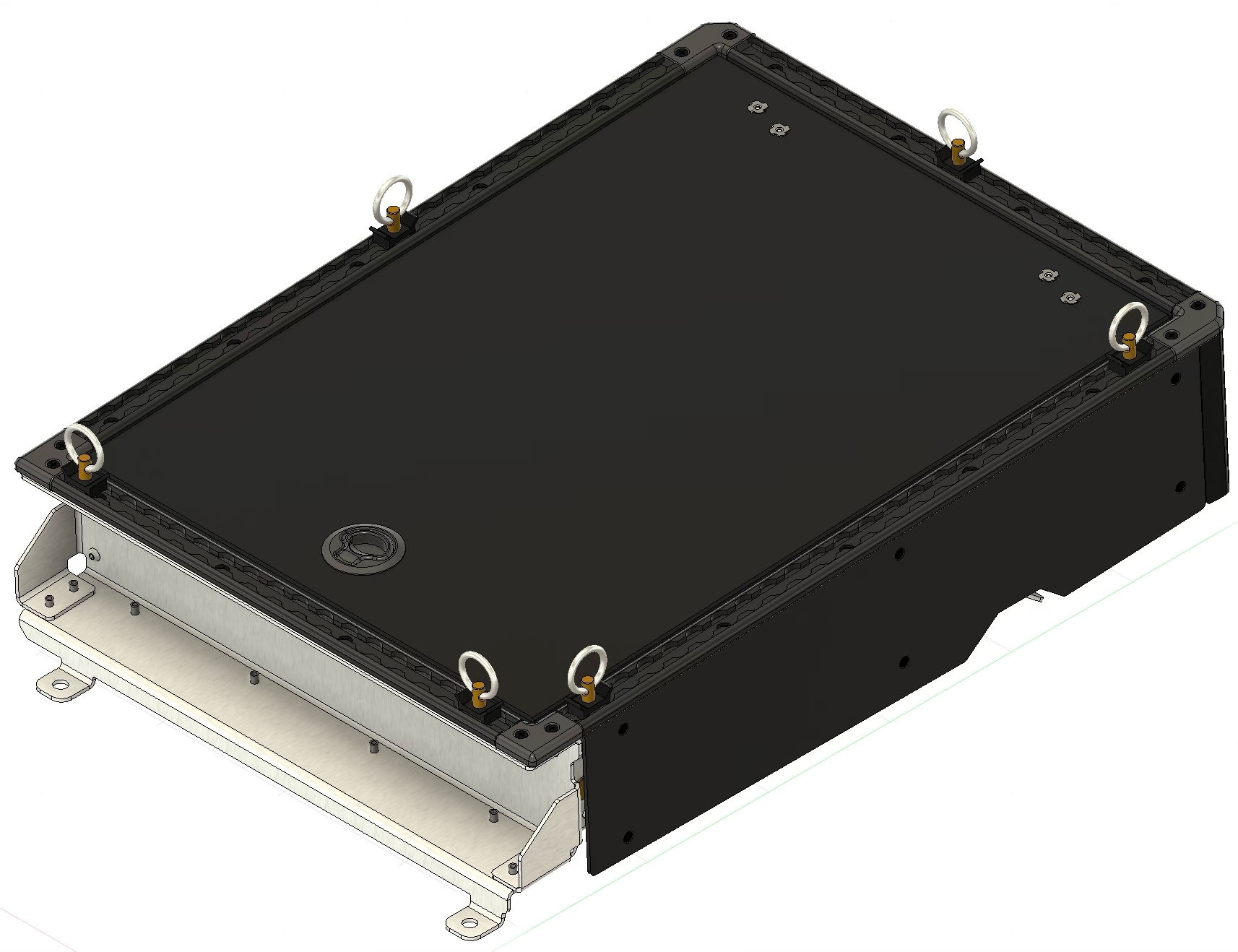

• 7 ft of L-Track* surrounds the hatch perimeter for flexible cargo tie-downs

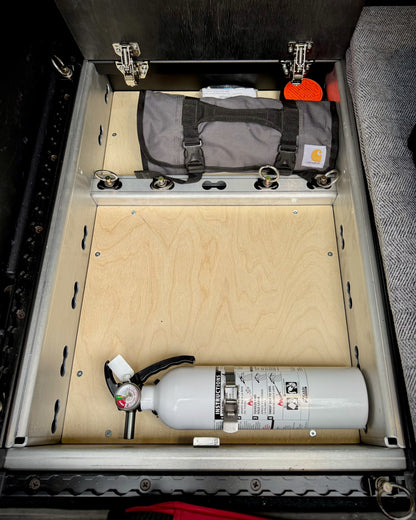

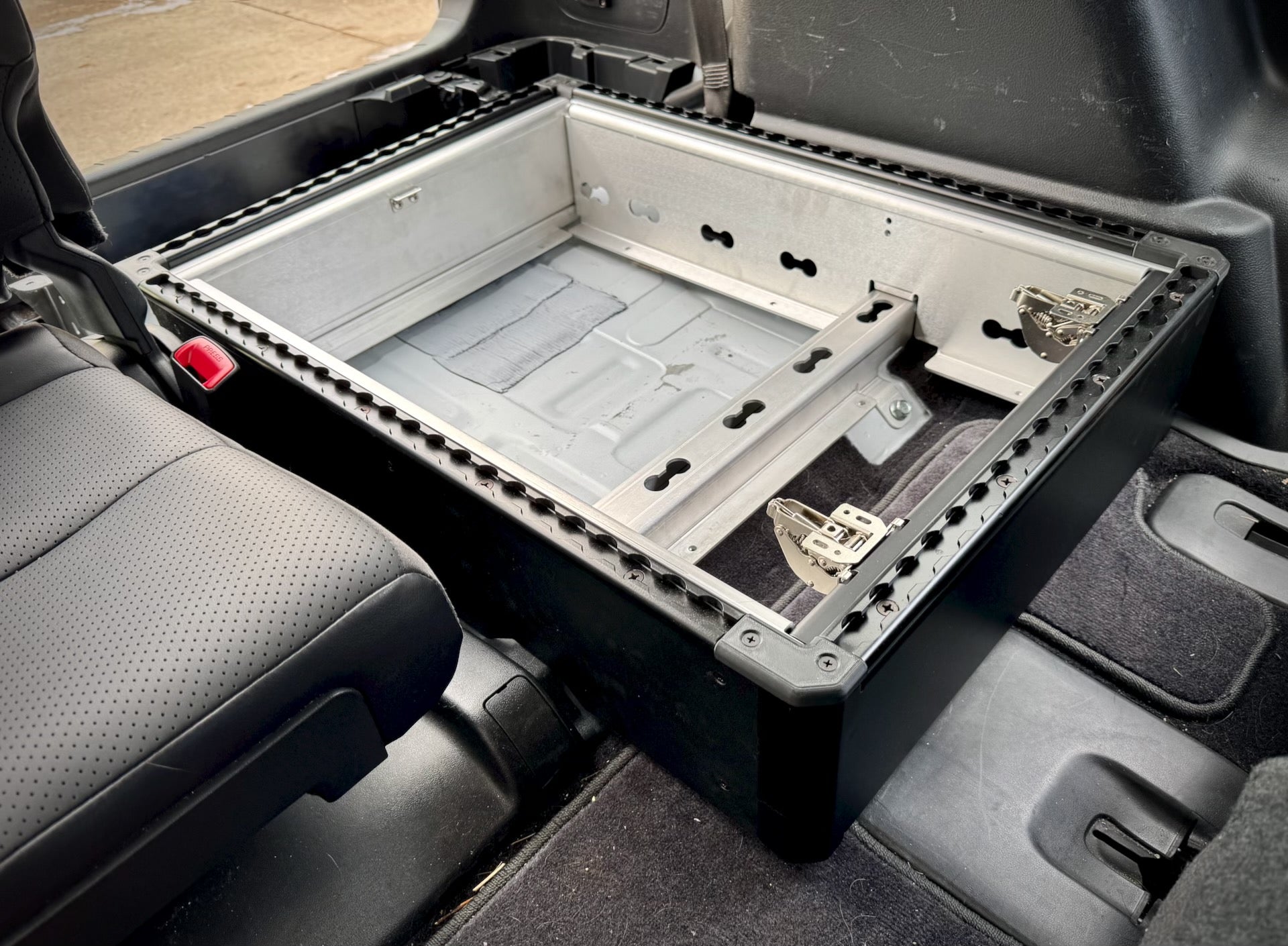

• 17 additional L-Track mounting points inside the cache for securing gear and unused fittings
• Plywood floor allows custom mounting using wood screws

Materials & Construction

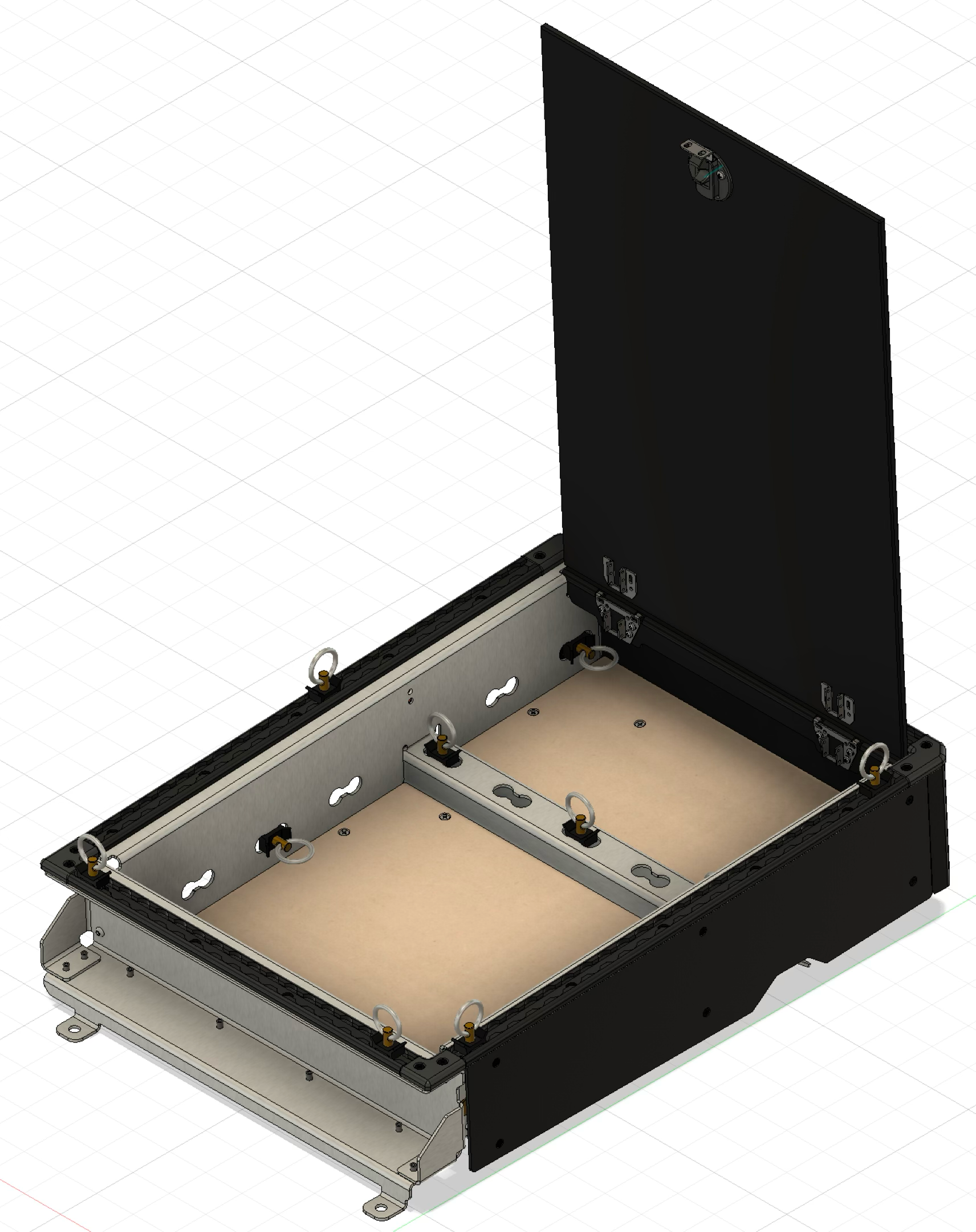

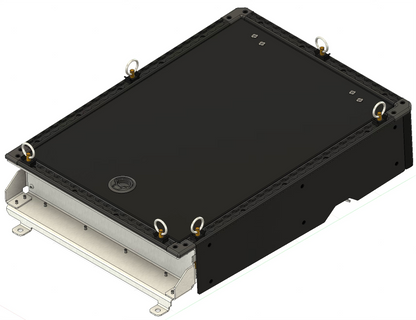

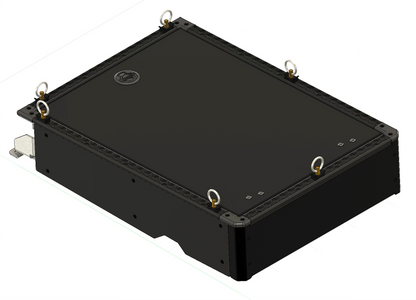

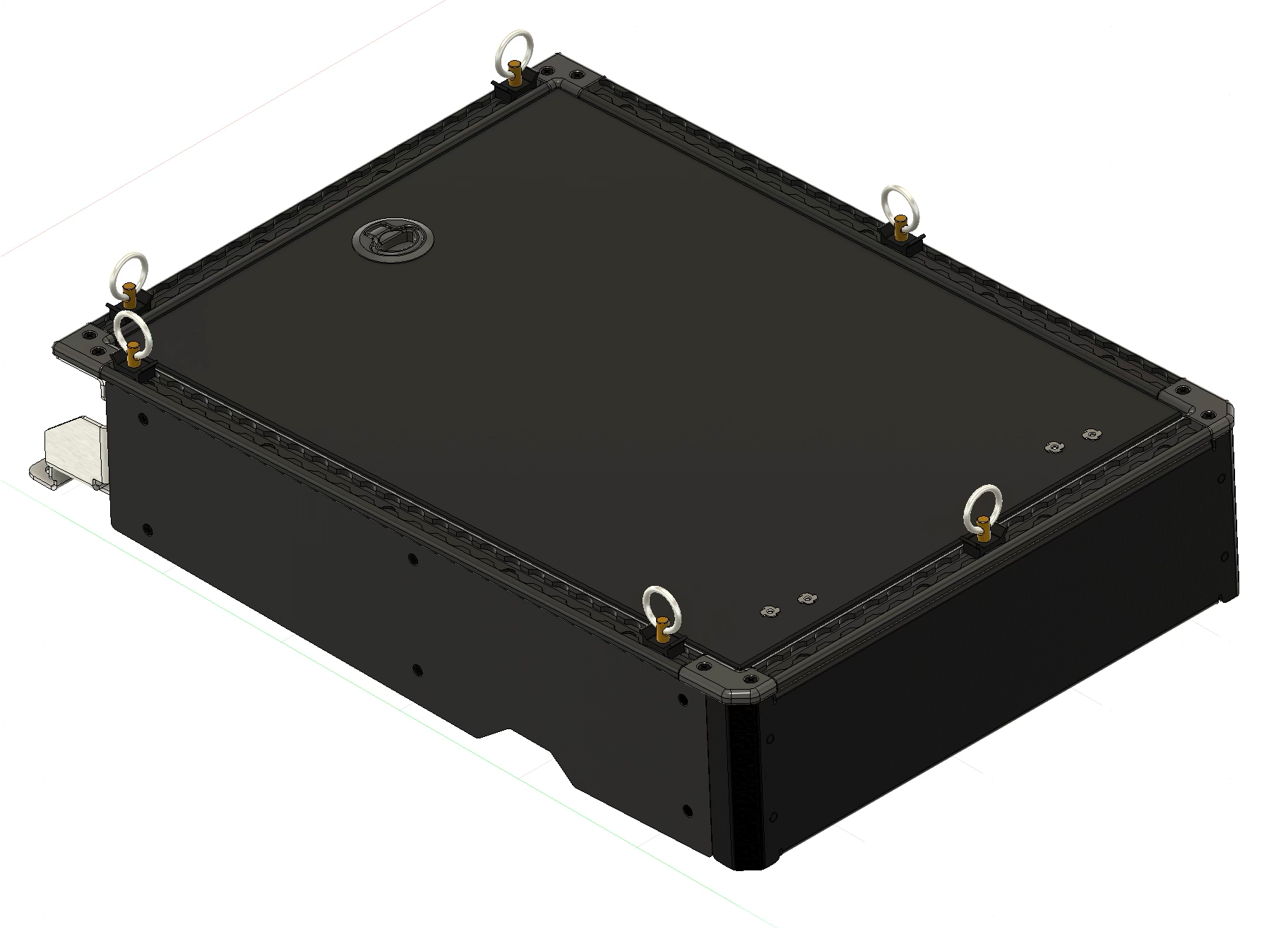

• Frame: Laser-cut .125 in. (3.2 mm) 5052-H32 aluminum
• Hatch & floor: Sealed 3/8 in. (9 mm) Baltic Birch plywood
• Weight: 25.5 lbs (11.6 kg)
• Black finish on visible exterior surfaces
  • Powder-coat, carpet, screws, and plastic bits

Fit & Installation

• Bolt-in design: mounts to factory 3rd-row seat anchors
• All metric fasteners for your all metric Lexus
• Installs in 30–60 minutes
• Requires one reversible modification to the OEM rear cargo deck
  • Details in install instructions

Included in the Box

• backPAC Cargo Cache
• x8 L-Track stud fittings w/ stainless steel rings

You'll Need

• Factory seat screws (x4 M10 x 1.25 flange screws)
• Basic automotive hand tools
• Whatever gear you want to stash in it

Load Ratings

Total ratings include cargo stored inside the cache and anything mounted on top. All ratings assume even weight distribution.

• Inside Cache Rating: 30 lbs — unless limited by total rating (below)

Total Ratings (inside + on top):

• Pavement/Smooth Gravel: 200 lbs
• Off-road conditions:
  • Mild: 160 lbs
  • Moderate: 120 lbs

*Secure loads close to the surface of the cargo platform and never above the second row seat back. It is not recommended to carry hard or heavy items on the cargo platform while the remaining 3rd row seat is being used.
**As a precaution, cover exposed L-Track prior to animals or people occupying the 3rd-row area.
